Control your bot like never before.
Our educators asked for it, and we’ve delivered the single most requested addition to the TETRIX® robotics system. T

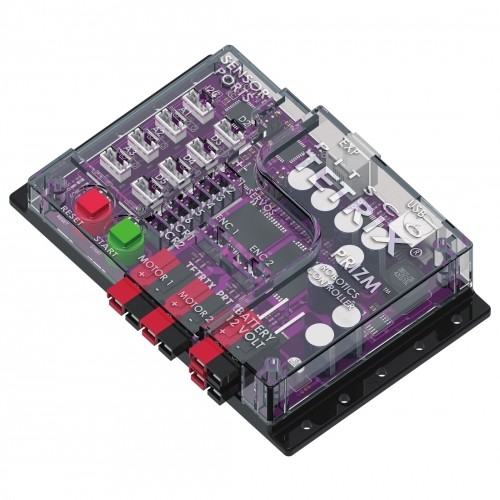

he TETRIX PRIZM™ Robotics Controller is a fully integrated, programmable brain for your bot that features a variety of motor, servo, encoder, and sensor ports with convenient connectors.
This controller offers the best of both worlds – a learning tool that is powerful yet easy to use.
Now, you and your students can take learning to new heights by creating smarter, more precise robots that are as real world as it gets.
제품 설명
This programmable robotics controller, specifically developed for the TETRIX® MAX system, enables teachers and students to program their robots using the Arduino Software (IDE).

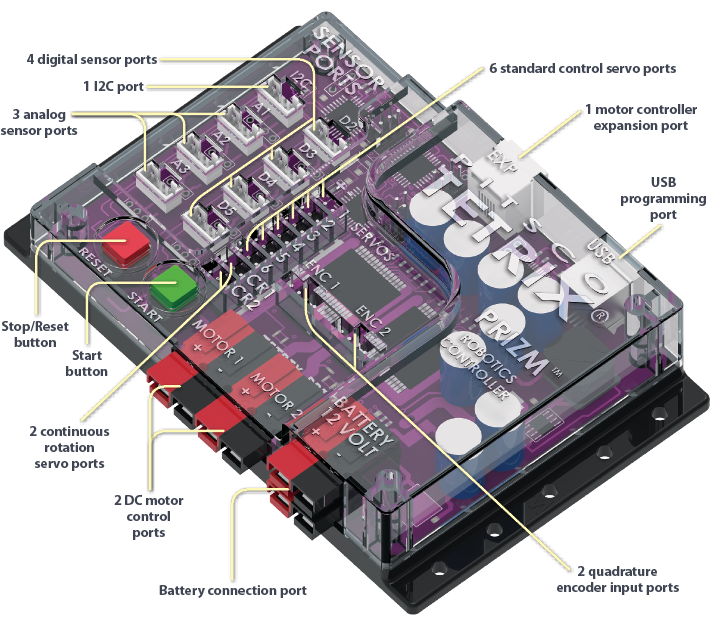

Features:
· 32 KB flash programmable memory
· ATmega328P processor with Arduino Optiboot bootloader installed
· 4 digital sensor ports (D2 can be used as a serial port) and 3 analog sensor ports
· 1 I2C port, 1 USB programming port, 1 motor controller expansion port, and 2 quadrature encoder input ports
· 2 high-current DC motor control ports
· 6 standard control servo ports and 2 continuous rotation (CR) servo ports
· Battery connection port (additional port used to daisy-chain power to other devices)
· Programmable Start button (green) and a non-programmable Stop/Reset button (red)
· Comes with USB cable, power switch, and motor cables
· Includes Quick-Start Guide with instructions for downloading the Arduino Software (IDE), which is compatible with Windows, Mac OS X 10.7 or newer, and Linux devices that have a USB port
제품 상세 이미지
